Hello, I’m sharing some pictures of our OpenFlexure low-cost and high resolution microscope builds! Hope you like our monochrome orange microscopes :tangerine: :tangerine:

We used a Bambu Lab X1 Carbon 3D printer. In total we used 360g of orange PLA filament and 11g of black PLA filament. Total print time was around 12 hours.

high_power_version_6
high_power_version_6559×652 395 KB

high_power_version_5
high_power_version_5415×606 292 KB

Some images from prepared slides:

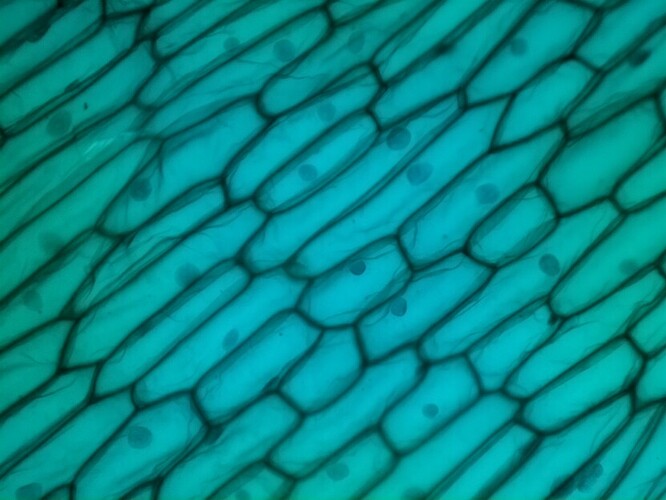

h_res_onion_cells
h_res_onion_cells832×624 60 KB

h_res_mushroom
h_res_mushroom832×624 108 KB

h_res_waterlily
h_res_waterlily832×624 83.8 KB

h_res_cardiac
h_res_cardiac832×624 63.7 KB

h_res_hydrilla_leaf
h_res_hydrilla_leaf832×624 52.4 KB

We also made the low-cost version and have been able to switch between the two versions pretty easily. Here is an image of the low-cost version as well:

lowcost_version_2
lowcost_version_21000×669 49.7 KB

low_cost_onion
low_cost_onion832×624 89.4 KB

low_cost_mushroom
low_cost_mushroom832×624 102 KB

low_cost_hydrilla_leaf
low_cost_hydrilla_leaf832×624 70.8 KB

It was a really fun build and the microscope images we captured were fantastic, especially with the high-resolution version. I used prepared slides to get started using the microscope quickly.

Thanks!

7 Likes
2

@jorodeo great builds! It is very nice to see images from the two optics versions side by side here. Is your high resolution lens 40x?

1 Like
3

Thanks @WilliamW! Yes exactly, it’s the 40x lens. We used an Amscope 40X. We have also written up a short blog post about our build here if you want to check it out: Spotlight: Building an OpenFlexure Microscope.

1 Like
4

Lovely - really nice build and images (even with the low cost)
